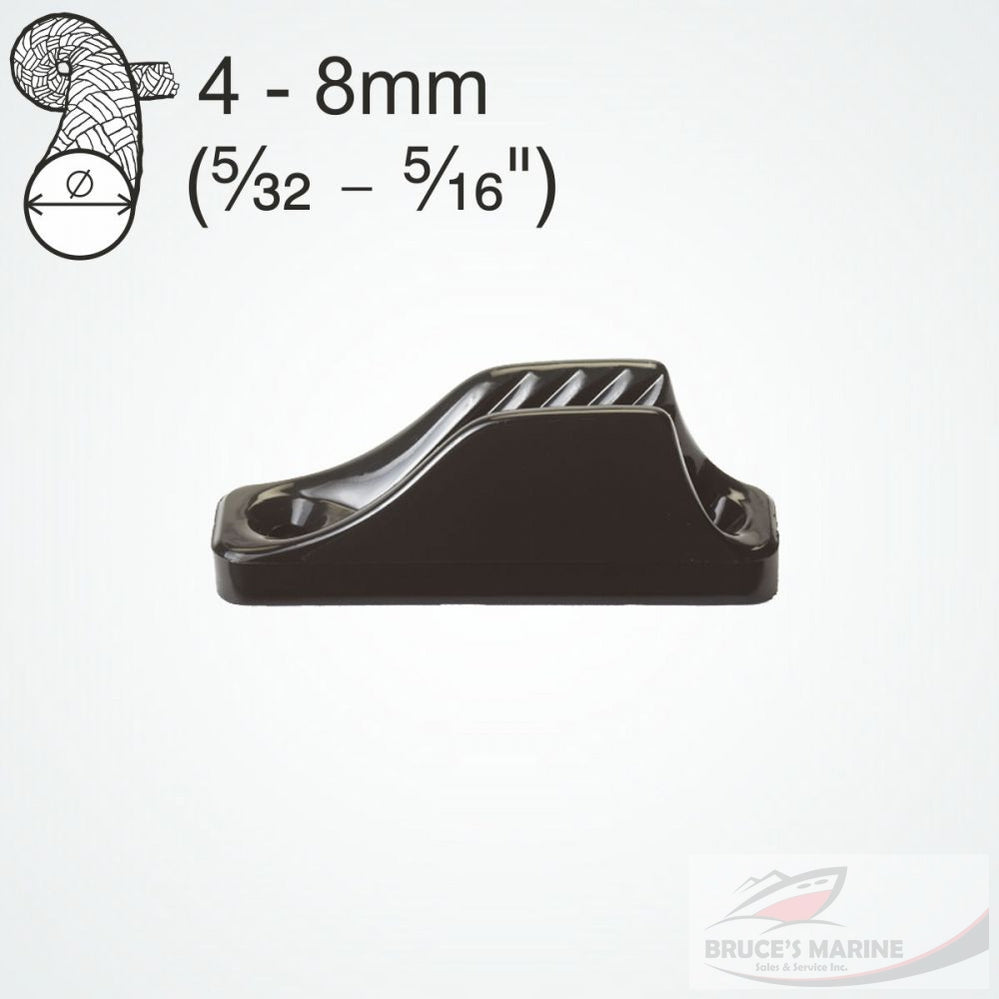

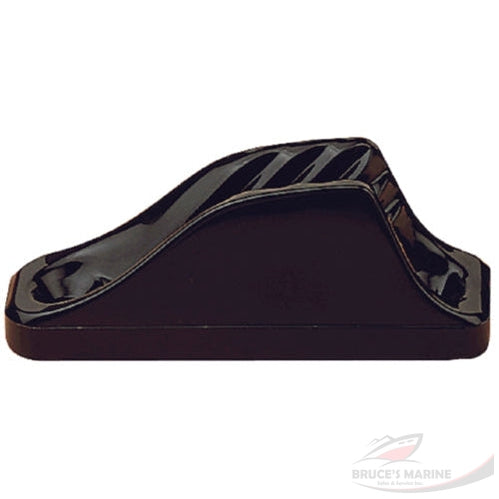

CL209 Clamcleat, Midi (3/16" - 5"/16) Black Nylon

Clamcleats are marine grade nylon cleats. Ideal for most applications where high loads or rope surges are not likely to be encountered. Corrosion resistant.

Fits the following sizes of rigging:

4mm - 8mm
3/16" - 5/16"

Requires 2 x the following mounting hardware:

3/16" Rivet or M5 #10 Bolt or 4.8mm #10 Screws

Rope Diameter		4 - 8mm	5/32 - 5/16"
Material		Nylon	Nylon
Hole Centres		54mm	2 1/8"
Length		73mm	2 3/4"
Width		19mm	3/4"
Height		26mm	1 1/32
Bolt Size		M5	No 10-24. 3/16"
Screw Size		4.5	No 10
